Automated Tarp System – Replacement Parts Overview

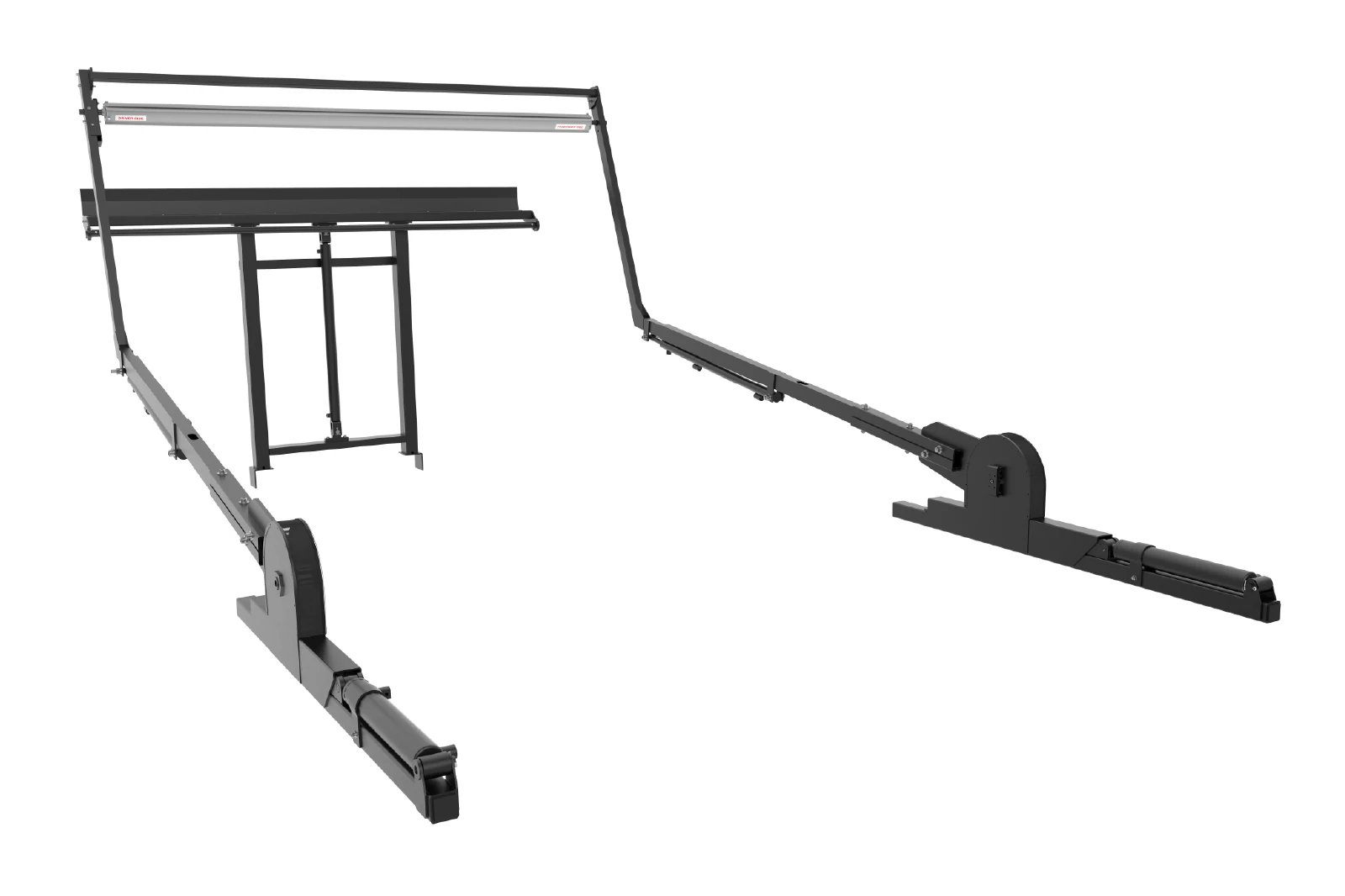

Get the Complete Automated Tarping System!
We offer a full system. To purchase the complete automated tarping system, click the button below.
*The automated tarping system is sold without control valve and diverter kit. See part number TA.PI.AUTOTARP.KIT.
View ProductExplore the Interactive Diagrams
Hover over each item to discover part details
Gantry Tower Parts
| ITEM NO. | PRT P/N | DESCRIPTION |
|---|---|---|
| 1 | T.PI.HR4753 | STABILIZER BAR |
| 2 | T.PI.H7002C | TARP ROLLER |
| 3 | T.PI.HR4505-2 | ROLL REST & BASE ASSY. |
| 4 | T.PI.HR4756 | TARP TUBE BRACKET |
| 5 | T.PI.HR4757 | TARP TUBE CAP. |
| 6 | T.PI.H7032 | GANTRY CYLINDER CLEVIS EYE |
| 7 | T.PI.HR4758-2 | TARP BAR 90-5/8” LONG |
| 8 | T.PI.HR4512 | GANTRY TELESCOPIC LEG |
| 9 | T.PI.H7062 | CLEVIS PIN |
| 10 | T.CYL.HR4520 | GANTRY BASE FRAME |
| 12 | T.PI.HR4519 | CHASSIS MOUNTING ANGLE |
| 13 | T.PI.HR4759U | MESH TARP, 9.5' X 28FT (W/SIDE FLAPS) |
Main Pivot Assembly
| ITEM NO. | PRT P/N | DESCRIPTION |
|---|---|---|
| 14 | T.PI.HR4760D | BASE ARM ASSY. NEW STYLE 2018+ |
| 15 | T.PI.HR4726 | LEFT & RIGHT BRUSHES (2PC SET) |
| 16 | T.PI.A3881-KIT | PIVOT PIN WITH NUT AND COTTER PIN |
| 17 | T.PI.A3883 | CYLINDER PIN |
| 18 | T.PI.HR4731 | CYLINDER STRAP |
| 19 | T.PI.D18836 | RACK CYLINDER CONNECTING PIN |
| 20 | T.PI.HR4728 | SWIVEL HOSE CLAMP |
| 21 | T.PI.HR4785 | CASTLE NUT |
| 22 | T.CYL.HR4719 | CYLINDER |
| 23 | T.PI.A3868E | RACK ASSEMBLY NEW STYLE 2018+ |
| 24 | T.PI.D18718A | PLASTIC WEAR STRIP |
| 25 | T.PI.3824063FHSCSP | TAPERED BOLT |
| 26 | T.PI.A4005D-1 | LH WELDMENT HOUSING ONLY |
| 27 | T.PI.A4006D-1 | RH WELDMENT HOUSING ONLY |
| 28 | TA.PI.HR4761D | COMPLETE LH PIVOT ASSY. |
| 29 | TA.PI.HR4762D | COMPLETE RH PIVOT ASSY. |
Arm Parts
| ITEM NO. | PRT P/N | DESCRIPTION |
|---|---|---|
| 30 | T.PI.HR4789 | RACHET GUARD |
| 31 | T.PI.HR4788KIT | PAWL, SPRING & SPACER |
| 32 | T.PI.HR4751 | UPPER ARM |
| 33 | T.PI.HR4750 | BASE ARM |
| 34 | T.HYD.MC-50 | HOSE SLEEVE |
| 35 | T.PI.HR4584 | HYDRAULIC HOSE |
| 36 | T.PI.HR4681 | #6 ELBOW FITTING |
| 37 | T.CYL.HR4752 | EXTEND CYLINDER |
| 38 | T.PI.HR4585 | HYDRAULIC HOSE |
| 39 | T.PI.HR4681 | #6 ELBOW FITTING |
| 40 | TA.PI.HR4766L | DRIVER SIDE |
| 41 | TA.PI.HR4766R | PASSENGER SIDE |
